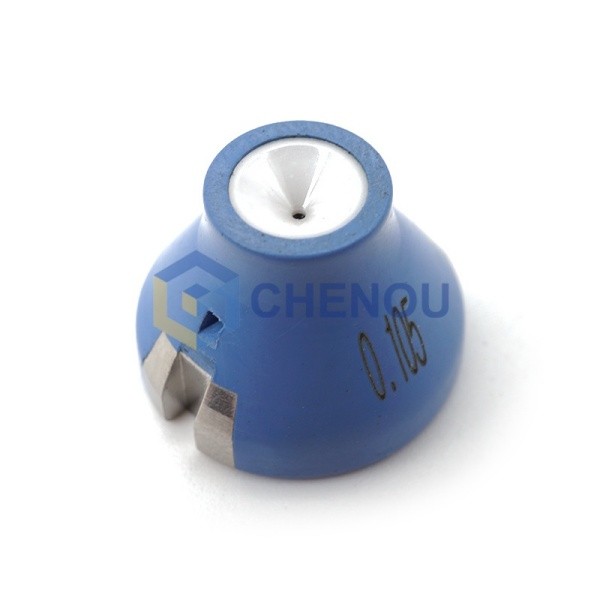

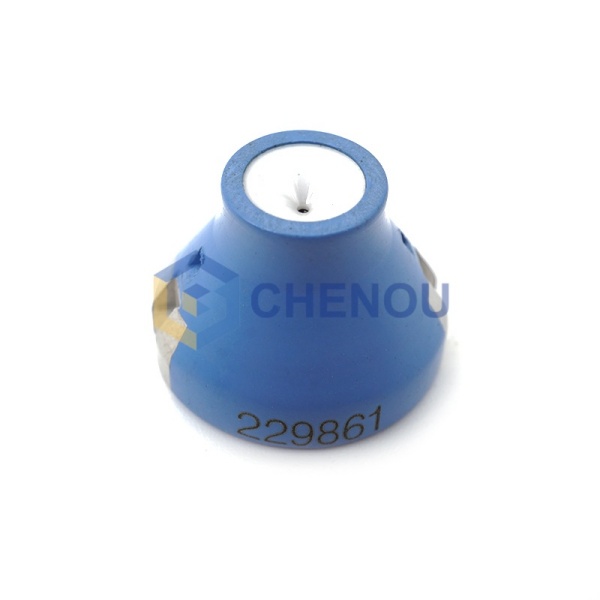

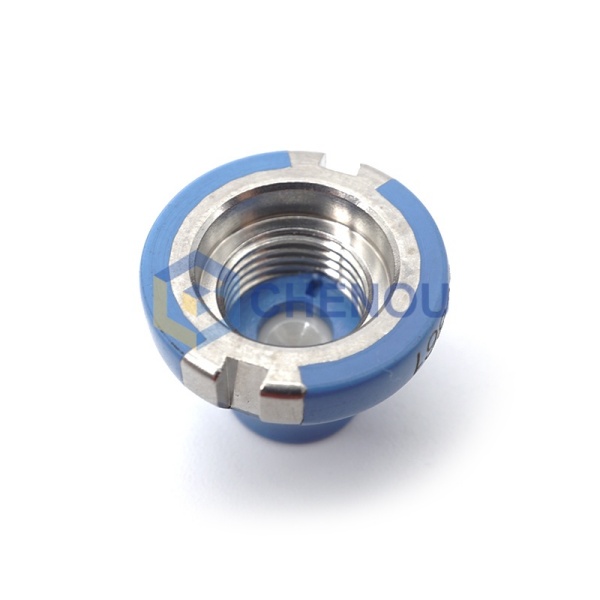

J03638A 0206100 Sodick diamond wire guide blue ID 0.105mm

Product:  J03638A 0206100 Sodick diamond wire guide blue ID 0.105mm

Size: OD16 x T11.5mm

OEM No.: J03638A, 0206100

OEM code:

ID=0.105mm  0206100 J03638A  Blue

ID=0.110mm  0206101 J03639A  Blue

ID=0.120mm  0206102 J03640A  Blue

ID=0.155mm  0206103 J03641A  White

ID=0.160mm  0206104 J03642A  White

ID=0.170mm  0206105 J03643A  White

ID=0.205mm  0206106 J03644A  Yellow

ID=0.210mm  0206107 J03645A  Yellow

ID=0.220mm  0206108 J03646A  Yellow

ID=0.255mm  0206109 J03647A  Green

ID=0.260mm  0206110 J03648A  Green

ID=0.270mm  0206111 J03649A  Green

ID=0.305mm  0206112 J03650A  Red

ID=0.310mm  0206113 J03651A  Red

ID=0.320mm  0206114 J03652A  Red

Application: Sodick Wire EDM machines

AG400L,AG600L,AG360L,AD325L, AQ400L,AQ600L,AQ300L,AQ325L,

AQ327L,AQ360L,AQ535L,AQ537L, AQ550L,AQ560L,AQ750L,AQ900L

Stocks: Yes

We supply a full range of high-quality Sodick EDM accessories.

Our Sodick EDM machine parts include wear components such as diamond and tungsten wire guides, power feed contacts, carbides, water nozzles, rollers, shafts,

isolator plates, discharge cables, die guide holders, and more.

We also offer consumables like filters, brass wire, ion-exchange resin, and electrode tubes.

Plus EDM accessories and tooling, including fixture boards, bridge clamps, and vises specifically for Sodick EDM machines.

Most items of the Sodick EDM parts are in stock to ensure fast shipment.

Features：

1. Produce according to the original samples.

2. Common parts are with stocks, delivery 5-7 days.

3. Original maintenance parts are also available.

4. Any quality problem, we will resend or refund.

5. Normally, shipment by Express for consumable parts.
