Charmilles Wire Guides – The Heart of EDM Excellence

Every component of a wire EDM machine is crucial for achieving perfect machining. Among them, Charmilles wire guides, as the core cornerstone of performance, durability, and precision, are the standard for high-performance wire EDM consumables and spare parts, specifically designed for Charmilles wire EDM machines, bringing exceptional value to operators.

The Critical Role of Wire Guides in EDM

Wire guides are the unsung heroes in wire EDM (Electrode Die Cutting) processes. Their core function is to precisely control the path of the electrode wire, ensuring that every cut is straight, clean, and meets the most stringent tolerance requirements. Inferior wire guides can lead to electrode wire misalignment, poor workpiece surface quality, and increased scrap rates, directly impacting a company's economic benefits. Therefore, choosing the right Charmilles wire guide is not only a maintenance decision but also a strategic investment in production quality.

Material Matters: Choosing the Right Charmilles Wire Guide

Diamond wire guides: the gold standard for high-precision applications. Diamond's extremely high hardness and wear resistance make it ideal for production using fine electrode wires for extended periods.

Ceramic wire guides: They possess excellent thermal stability and corrosion resistance, making them ideal for use in high-temperature and chemically corrosive environments.

Sapphire wire guides: As a cost-effective alternative to diamond, sapphire wire guides offer excellent hardness and wear resistance. They are a popular choice for medium-precision applications, achieving a good balance between performance and cost.

Carbide wire guides: Known for their exceptional strength and durability, they are ideal for heavy-duty cutting operations. They can withstand the demanding requirements of high-speed machining and are often used in applications requiring impact resistance.

Perfectly Compatible with Charmilles EDM Machine Tools

Charmilles wire guides are OEM-compatible replacements designed specifically for Charmilles EDM machine tools, including the popular Robofil and CUT series. This ensures:

Easy Installation: Direct fit, no modification required, reducing installation time.

Seamless Integration: Perfect synergy with other machine tool components, optimizing overall system performance.

Peace of Mind: Uses high-quality original equipment manufacturer (OEM) spare parts, protecting the machine tool warranty and ensuring the equipment always operates at optimal efficiency.

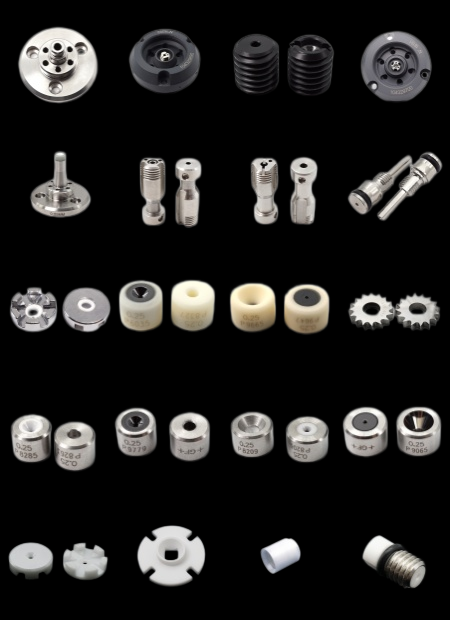

Common Charmilles Wire Guides

• C101 (Upper Head, Diamond)OEM: 200431021 (0.07mm), 100431022 (0.10mm), 200431114 (0.15mm), 200431112 (0.20mm), 100432511 (0.25mm), 200432512 (0.30mm), 135006537 (0.33mm)

• C102 (Lower Head, Diamond)OEM: 200431122 (0.20mm), 100430586 (0.25mm), 200432814 (0.30mm), 100431027 (0.15mm)

• C103 (Lower Head, Diamond, Thin Wire)OEM: 204339880 (0.10mm), 204339870 (0.15mm), 204339860 (0.20mm), 204339850 (0.25mm), 204339840 (0.30mm)

• C105 (Sapphire Guide)OEM: 100441423

• Universal Guides: 135011600, 135011602, 135011604

• Upper Guide Assembly: 417984

• Sapphire Screw (C104): 104447350
